AIS vs GIS Switchgear: Key Differences in Cost, Space, Maintenance, and Application

Choosing between AIS vs GIS switchgear is not only a technical decision. For many project owners, EPC contractors, utilities, and industrial facilities, it is also a commercial decision that affects project cost, available space, maintenance planning, installation complexity, and long-term reliability.

AIS, or Air Insulated Switchgear, uses air as the primary insulation medium. GIS, or Gas Insulated Switchgear, uses gas-insulated compartments to isolate and protect high-voltage or medium-voltage components. Both technologies are widely used in power distribution and transmission systems, but each one is better suited to different project conditions.

The right choice depends on the site environment, available footprint, project budget, operational expectations, and future expansion requirements.

What Is AIS Switchgear?

AIS switchgear uses ambient air as the insulation medium between live electrical components. Because air has lower dielectric strength compared with gas insulation, AIS equipment generally requires more physical clearance and a larger installation footprint. This makes AIS more suitable for projects where space is available and where access for inspection, maintenance, and expansion is important.

AIS is commonly used in industrial plants, utility substations, mining facilities, renewable energy projects, and commercial infrastructure where the electrical room or substation area can accommodate larger equipment.

One of the main advantages of AIS is its straightforward design. Components are easier to inspect visually, and maintenance teams can often access parts more directly. This can make AIS attractive for facilities that prioritise serviceability, flexibility, and lower upfront equipment cost.

What Is GIS Switchgear?

GIS switchgear places key electrical components inside sealed, gas-insulated metal enclosures. Compared with AIS, GIS offers a more compact footprint and is often selected for space-constrained sites, challenging environments, underground substations, urban infrastructure, transport projects, and facilities where reliability and reduced maintenance are critical.

Traditional GIS commonly uses SF₆ gas as an insulation medium, although modern SF₆-free GIS solutions are increasingly available. Some manufacturers now offer dry-air or alternative gas-insulated systems to reduce environmental impact while maintaining compact design and operational reliability.

For projects where land cost is high or where the electrical room has strict space limitations, GIS can provide a strong commercial advantage despite its typically higher initial investment.

AIS vs GIS Switchgear: Cost Comparison

Cost is one of the first factors buyers compare when evaluating AIS vs GIS switchgear.

AIS usually has a lower upfront cost because its construction is simpler and it does not require sealed gas compartments. For projects with sufficient space and standard environmental conditions, AIS can be a cost-effective solution.

GIS generally has a higher initial cost because of its compact metal-enclosed design, gas-insulated compartments, and more specialised manufacturing requirements. However, GIS may reduce other project costs, especially when space is expensive, civil works are limited, or downtime must be minimised.

The better way to compare AIS and GIS is not only through purchase price, but through total cost of ownership. Buyers should consider:

Cost Factor	AIS Switchgear	GIS Switchgear
Initial equipment cost	Usually lower	Usually higher
Civil and building cost	May be higher due to larger footprint	May be lower due to compact footprint
Maintenance cost	Can be higher over time	Often lower due to sealed design
Installation space cost	Higher if land/building space is limited	Lower where space is expensive
Repair complexity	Easier access to components	May require specialised service

For projects where space is not a major issue, AIS may provide better upfront value. For projects where footprint, uptime, and environmental exposure are major concerns, GIS may deliver stronger lifecycle value.

AIS vs GIS Switchgear: Space Requirement

Space is one of the clearest differences between AIS and GIS.

AIS requires larger clearances between live parts because air is used as the insulation medium. This means AIS panels or substations often need larger rooms, wider access areas, and more installation space.

GIS is much more compact because the insulation is contained inside sealed gas compartments. This makes GIS suitable for:

• Urban substations

• Underground installations

• Data centres

• Transport infrastructure

• Mining and tunnel projects

• Offshore and coastal facilities

• Industrial sites with limited electrical room space

If the project has plenty of available land or switchroom space, AIS can be practical and economical. If the project is located in a dense urban area or within a facility where every square metre matters, GIS is often the stronger option.

AIS vs GIS Switchgear: Maintenance Requirements

Maintenance is another important consideration when comparing AIS and GIS.

AIS is easier to access, inspect, and service. Technicians can visually check components, perform routine maintenance, and replace parts with less specialised equipment. This makes AIS attractive for facilities with in-house electrical maintenance teams.

However, because AIS is more exposed to air, dust, humidity, pollution, and environmental contamination, it may require more frequent cleaning and inspection depending on site conditions. The European Commission notes that air-insulated equipment can be more affected by humidity and dust exposure due to its use of ambient air as insulation.

GIS requires less routine maintenance because live parts are enclosed inside sealed compartments. This protects components from dust, moisture, and other external contaminants. Hitachi Energy notes that GIS systems are compact and offer reduced maintenance compared with AIS, especially in harsh climates or urban areas.

The trade-off is that GIS maintenance and repair may require specialised technicians, gas-handling procedures, and manufacturer support. For critical assets, this should be considered during lifecycle planning.

AIS vs GIS Switchgear: Reliability and Environmental Conditions

Reliability depends not only on the equipment design but also on the environment where the switchgear is installed.

AIS performs well in controlled indoor environments or outdoor substations where space, ventilation, and routine maintenance access are available. It is a proven technology with strong flexibility for many standard power distribution projects.

GIS is often preferred where environmental conditions are more demanding. Because the live parts are sealed, GIS can provide better protection against dust, moisture, salt contamination, industrial pollution, and small animals. This makes GIS especially useful in coastal regions, underground facilities, heavy industries, and compact substations.

For Australian projects, environmental conditions can vary significantly by site. A mining project, coastal facility, data centre, commercial building, and utility substation may all require different switchgear considerations. This is why the decision should be based on project-specific requirements rather than assuming one technology is always better.

When Should You Choose AIS Switchgear?

AIS is usually a strong choice when:

• The project has enough installation space

• Upfront equipment cost is a key concern

• Easy inspection and maintenance access are important

• The environment is clean, dry, and controlled

• Future expansion flexibility is required

• The project does not require the smallest possible footprint

AIS can be ideal for industrial plants, standard utility substations, renewable energy projects, and facilities where electrical rooms are designed with sufficient clearance.

For buyers who want a proven, accessible, and cost-efficient solution, AIS remains a practical option.

When Should You Choose GIS Switchgear?

GIS is usually a better choice when:

• Space is limited

• Land or building cost is high

• The site is exposed to dust, humidity, salt, or pollution

• Maintenance access is difficult

• Reliability and uptime are critical

• The project requires a compact switchgear layout

• The installation is underground, urban, offshore, or inside a constrained facility

GIS can be especially suitable for data centres, transport infrastructure, commercial buildings, mining operations, tunnel projects, and high-density urban substations.

Although GIS may require higher upfront investment, it can help reduce space requirements, simplify layout planning, and lower routine maintenance needs over the asset lifecycle.

AIS vs GIS Switchgear: Which One Is Better?

There is no single answer. The best choice depends on the project.

Choose AIS switchgear if your project has enough space, needs a lower upfront cost, and values easier access for inspection and maintenance.

Choose GIS switchgear if your project has limited space, challenging environmental conditions, or requires a compact and low-maintenance solution.

For commercial decision-making, the most important question is not “Which technology is better?” but “Which technology delivers the best total value for this site?”

How Leistung Energie Supports AIS and GIS Requirements

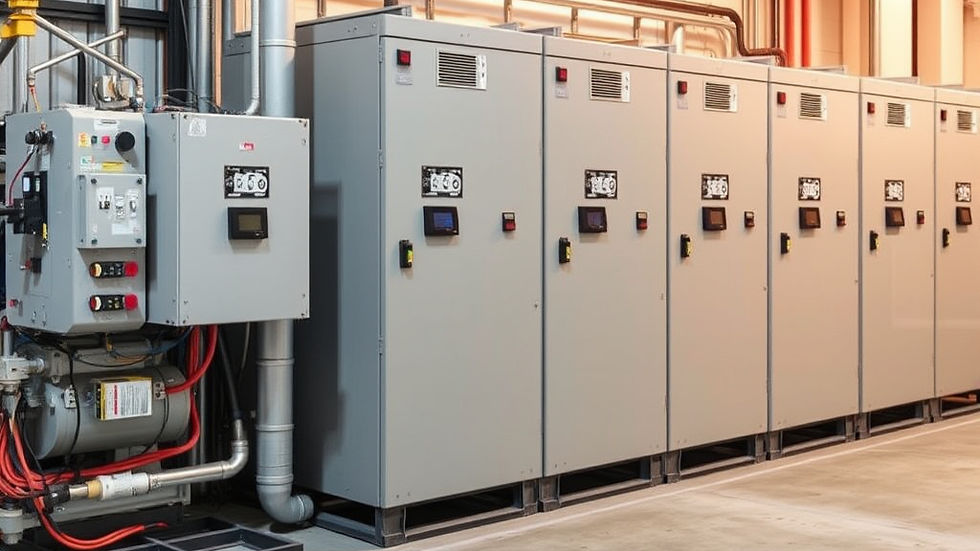

Leistung Energie provides medium voltage switchgear solutions including AMS Air Insulated Switchgear, GIM Gas Insulated Switchgear, and Airing SF₆-Free options.

The MV Switchgear range is positioned for projects requiring safe, reliable, and customised power distribution solutions.

This allows project teams to evaluate different switchgear configurations based on voltage rating, footprint, environmental conditions, operational requirements, and long-term maintenance strategy.

For buyers comparing AIS vs GIS switchgear, working with an experienced switchgear supplier can help reduce specification errors and ensure the selected solution aligns with site requirements, safety standards, and future expansion plans.

---

When comparing AIS vs GIS switchgear, buyers should evaluate four main factors: cost, space, maintenance, and application.

AIS is generally more cost-effective upfront and easier to maintain directly. GIS is more compact, better protected from harsh environments, and often requires less routine maintenance.

For projects with generous space and standard conditions, AIS may be the most practical choice. For space-constrained, high-reliability, or environmentally challenging projects, GIS may provide better lifecycle value.

Before ordering, review the project’s electrical load, available footprint, environmental exposure, maintenance capability, and expansion plan. The right switchgear decision will protect not only the electrical system, but also the long-term performance and cost efficiency of the entire project.
